Product Overview

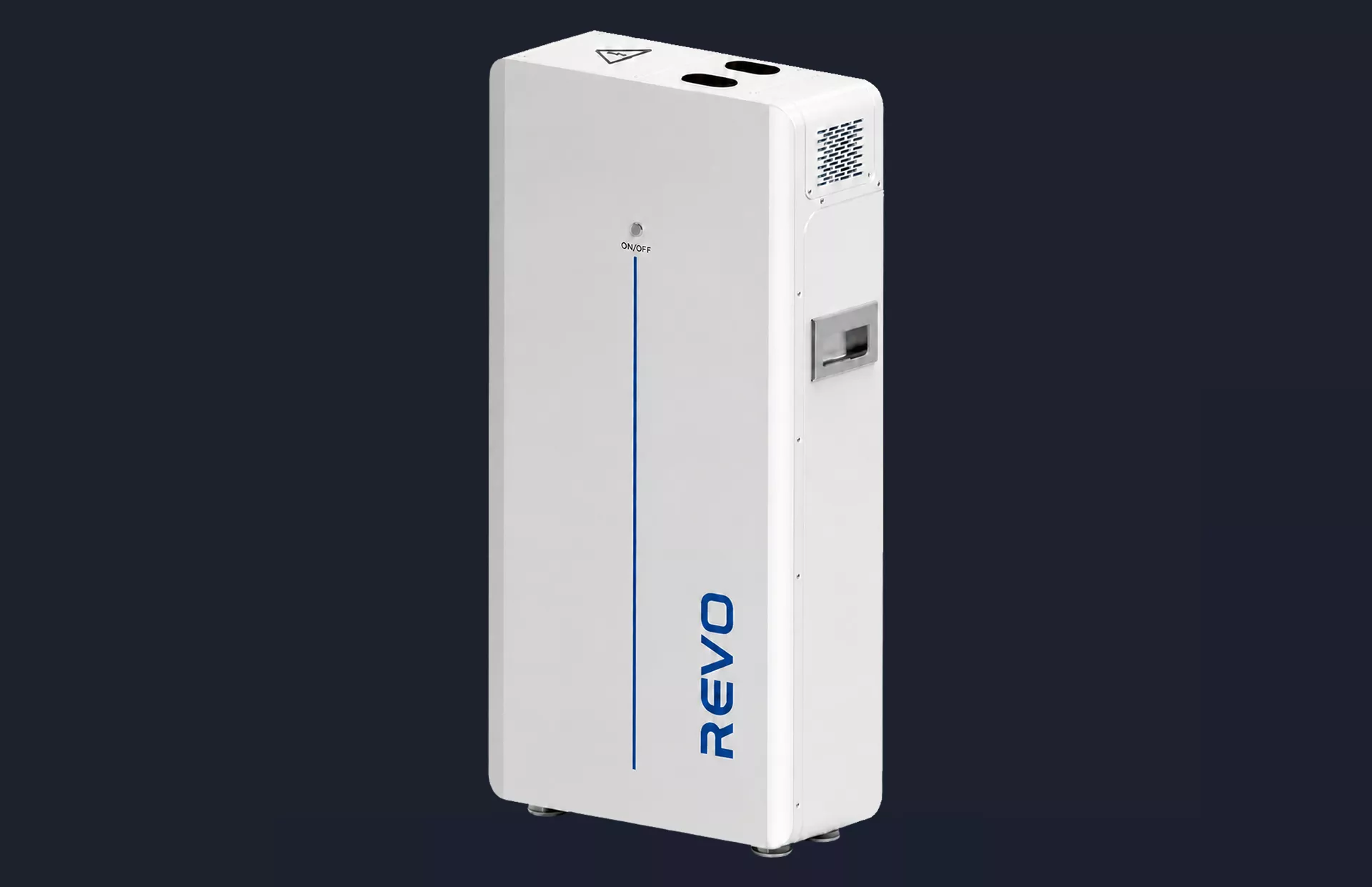

The datasheet positions this battery for residential apartments, housing, mini offices or warehouses, solar consumption, off-grid living and backup power.
01. Reliable performance in diverse applications
02. Durable operation with low degradation
03. Certified safety with continuous BMS protection
04. Compatibility with supported inverter brands
05. Flexible scalability up to 16 units in parallel
- SPECIFICATIONS
- APPLICATIONS
- DOWNLOADS
- CERTIFICATIONS
| Parameter | Value |
| Model | 51.2V100AH |
| Battery type | LiFePO4 |
| Rated voltage | 51.2 V |
| Rated capacity | 300 Ah |
| Rated energy | 5.12 kWh |
| Operating voltage | 44.8 V - 57.6 V |
| Max. continuous charge current | 200 A |
| Max. continuous discharge current | 200 A |
| Protection degree | IP20 |
| Communication | RS485 / CAN |
| Scalability | Up to 16 units in parallel |
| Cycle life | >6000 |
| Warranty | 10 years |
| Weight | 129 kg / 135 kg with packaging |
| Product dimension | 950 × 500 × 265 mm |
| Package dimension | 1024 × 554 × 347 mm |
| Container load | 90 units / 20 ft; 180 units / 40 ft |
| Installation | Floor-mounted |
REVO supplies complete PV and storage stacks for distributors, EPCs and system integrators that need bankable product families and engineering support.
