Product Overview

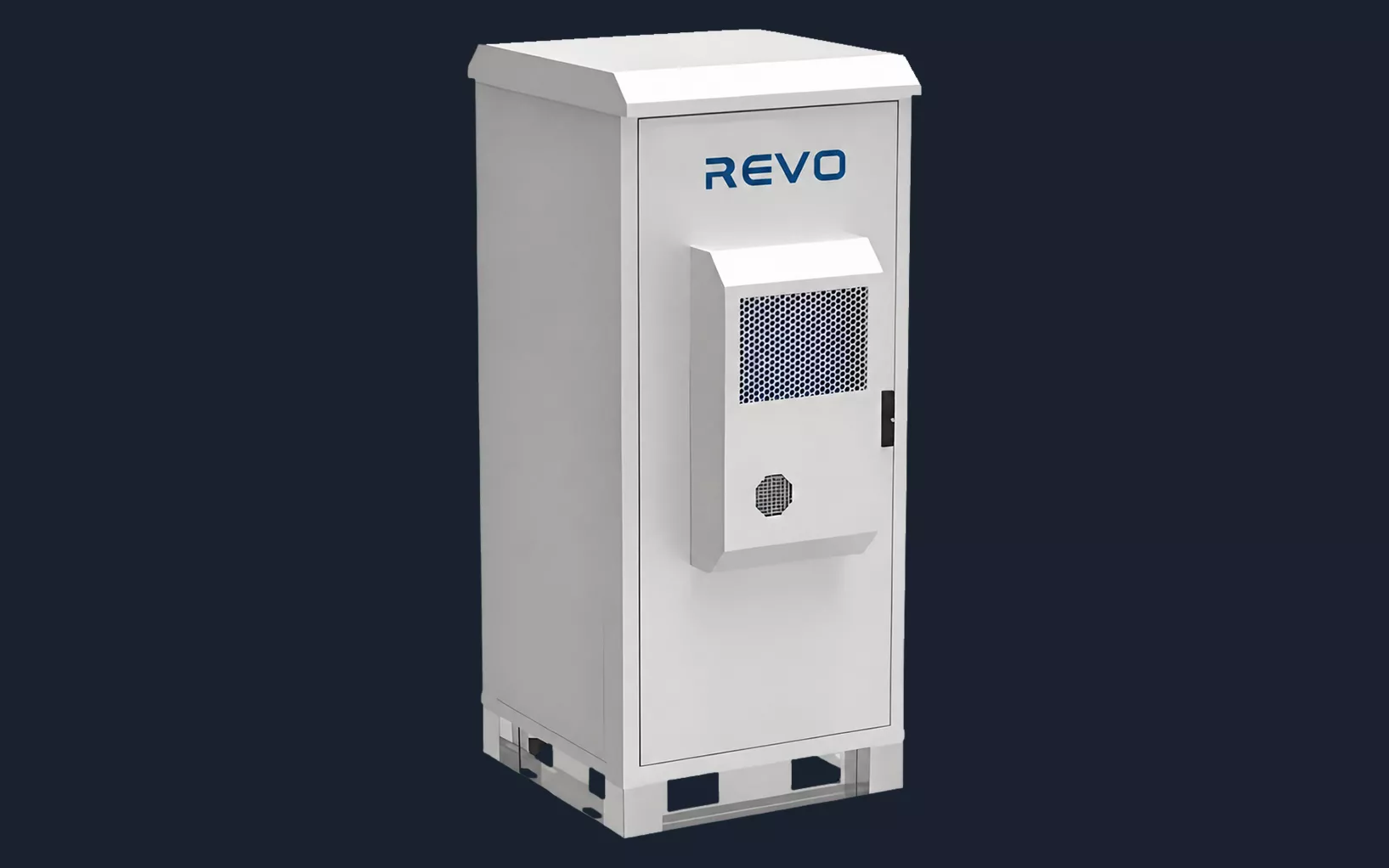

The datasheet presents Eclipse as a floor-mounted C&I storage platform for commercial sites, industrial facilities, data centers, off-grid solar, microgrids and charging stations..
01. Reliable energy storage platform for C&I applications
02. Durable operation for repeatable project deployment
03. Integrated protection and monitoring for safer operation
04. Flexible configuration for PV, grid and backup loads
- SPECIFICATIONS
- APPLICATIONS
- DOWNLOADS
- CERTIFICATIONS
| Model | 614.4V100AH |
| Battery type | LiFePO4 |
| Battery module | 76.8V100AH / 7.68 kWh |
| Number of battery modules | 8 |
| System nominal energy | 61.44 kWh |
| System nominal voltage | 614.4 V |
| System operating voltage | 576 V - 691.2 V |
| Max. continuous charge current | 100 A |
| Max. continuous discharge current | 100 A |
| Communication | CAN |
| Scalability | Up to 4 clusters in parallel |
| Balance | Active balancing |
| Cycle life | >6000 |
| Warranty | 10 years |
| Module dimension | 486 x 745 x 154 mm |
| Weight per module | 65 kg |
| Cabinet dimension | 700 x 1050 x 1900 mm |
| Installation | Floor-mounted |
REVO supplies complete PV and storage stacks for distributors, EPCs and system integrators that need bankable product families and engineering support.
