Product Overview

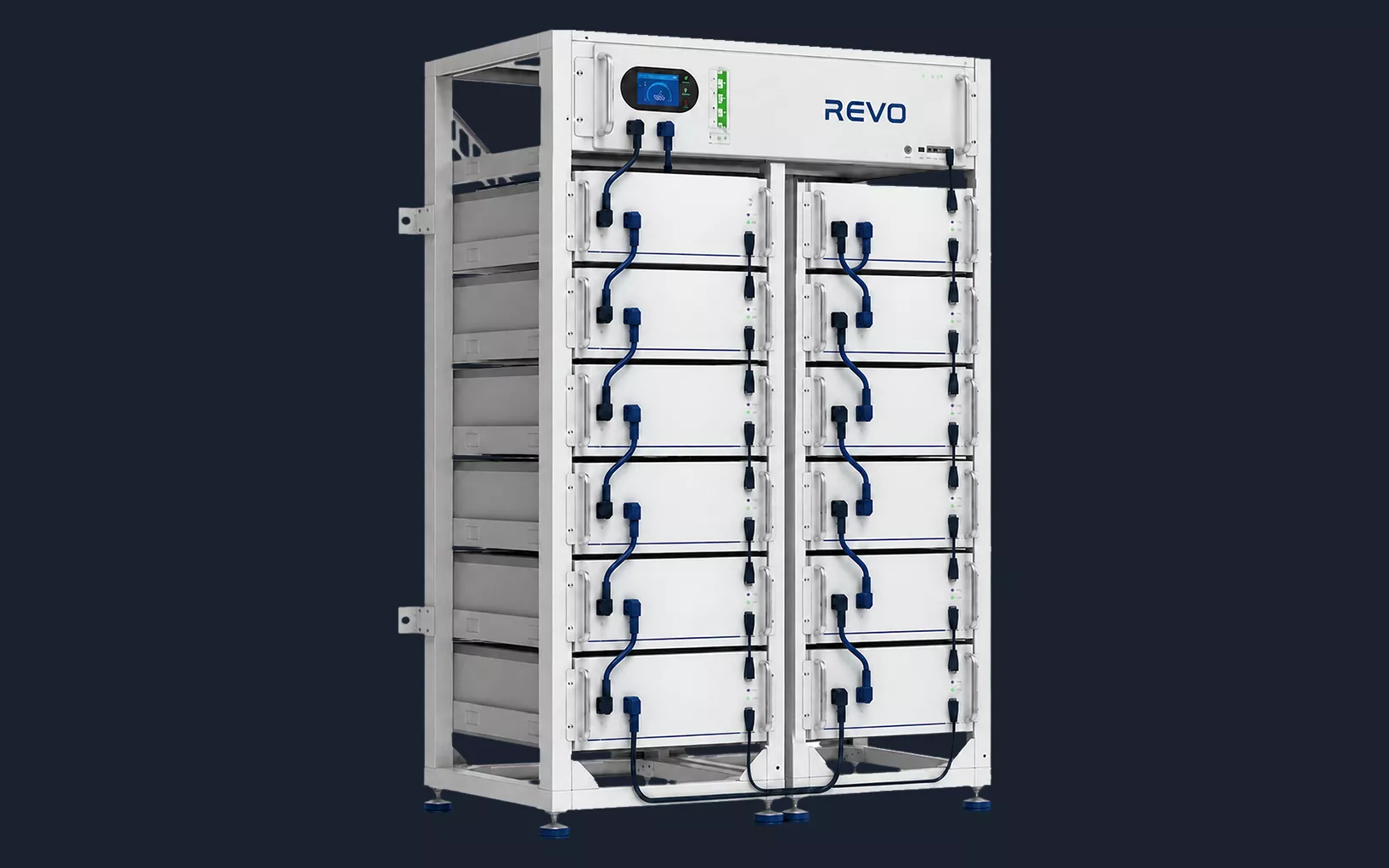

The datasheet presents Eclipse as a floor-mounted C&I storage platform for commercial sites, industrial facilities, data centers, off-grid solar, microgrids and charging stations..
01. Reliable energy storage platform for C&I applications
02. Durable operation for repeatable project deployment
03. Integrated protection and monitoring for safer operation
04. Flexible configuration for PV, grid and backup loads
- SPECIFICATIONS
- APPLICATIONS
- DOWNLOADS
- CERTIFICATIONS
| Model | 307.2V/614.4V100AH |
| Battery type | LiFePO4 |
| Rated energy per module | 5.12 kWh |
| Number of battery modules | 6 / 8 / 12 |
| System nominal energy | 30.72 / 40.96 / 61.44 kWh |
| System nominal voltage | 307.2 / 409.6 / 614.4 V |
| System operating voltage | 268.8-345.6 / 384-460.8 / 576-691.2 V |
| Max. continuous charge current | 100 A |
| Max. continuous discharge current | 100 A |
| Protection degree | IP20 |
| Communication | RS485 / CAN |
| Scalability | Up to 16 units in parallel |
| Balance | Active balancing |
| Cycle life | >6000 |
| Warranty | 10 years |
| Battery module dimension | 486 × 520 × 154 mm |
| Weight per module | 45 kg |
| Installation | Rack-mounted |
REVO supplies complete PV and storage stacks for distributors, EPCs and system integrators that need bankable product families and engineering support.
