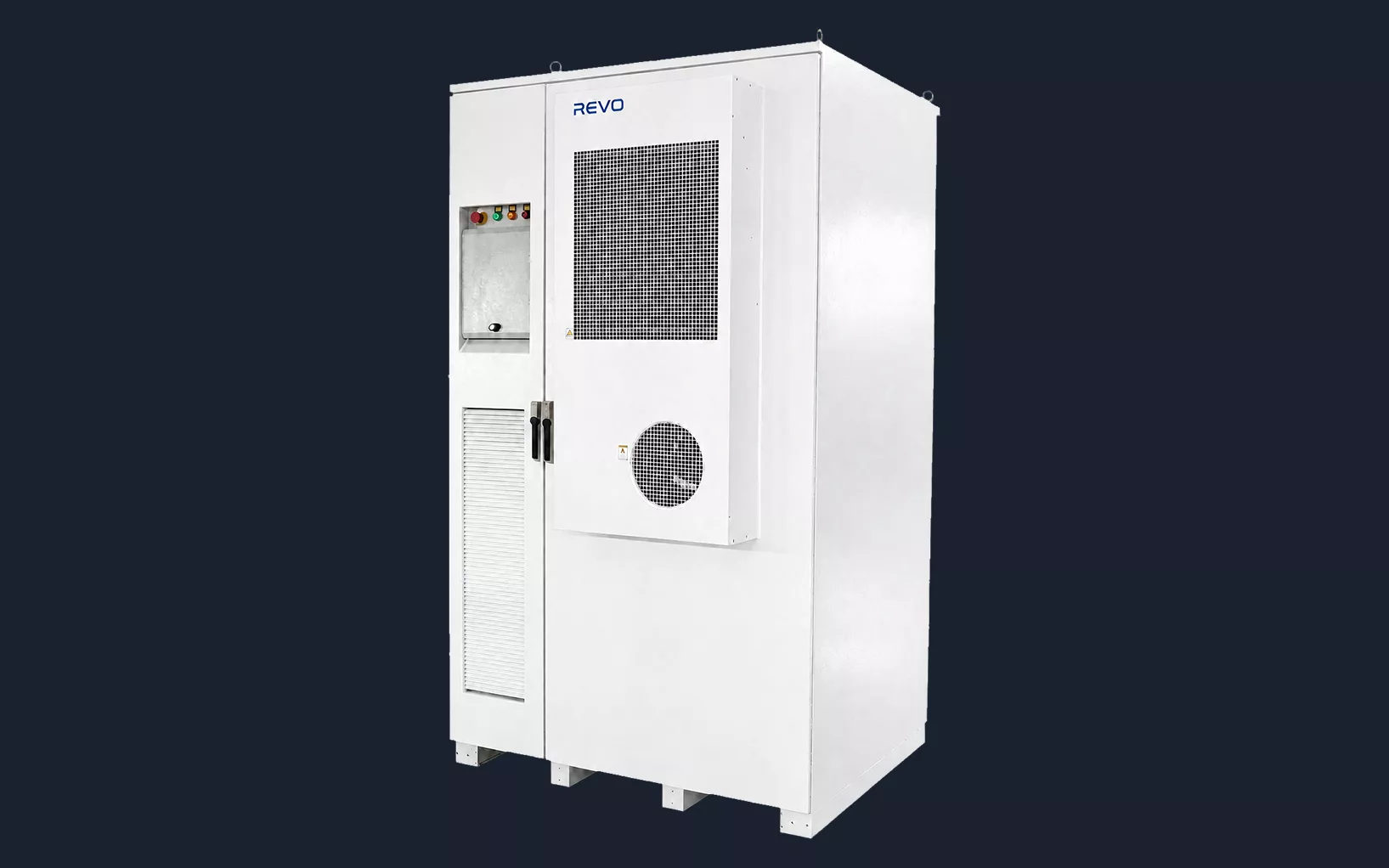

Skyline 241.152kWh Outdoor Cabinet

768V314Ah LiFePO4 outdoor cabinet with 15 modules, IP54 protection and active balancing.

241.152 kWh

ENERGY

768 V

VOLTAGE

IP54

IP RATING

Commercial Office and Complex

Off-Grid Solar System

Industrial Factory and Warehouse

Micro-Grid

Data Center and Telecommunication

Charging Station

Download Datasheet

WhatsApp/ WeChat

Official datasheet

Product Overview

The datasheet presents Eclipse as a floor-mounted C&I storage platform for commercial sites, industrial facilities, data centers, off-grid solar, microgrids and charging stations..

01. Reliable energy storage platform for C&I applications

02. Durable operation for repeatable project deployment

03. Integrated protection and monitoring for safer operation

04. Flexible configuration for PV, grid and backup loads

SPECIFICATIONS
APPLICATIONS
DOWNLOADS
CERTIFICATIONS

Model	768V314AH
Battery type	LiFePO4
Battery module	51.2V314AH / 16.0768 kWh
Number of battery modules	15
System nominal energy	241.152 kWh
System nominal voltage	768 V
System operating voltage	672 V - 876 V
Max. continuous charge current	100 A
Max. continuous discharge current	100 A
Protection degree	IP54
Communication	CAN
Scalability	Up to 10 clusters in parallel
Balance	Active balancing
Cycle life	>6000
Warranty	10 years
Module dimension	420 × 860 × 240 mm
Weight per module	120 kg
Cabinet dimension	1400 × 1340 × 2285 mm
Installation	Floor-mounted
