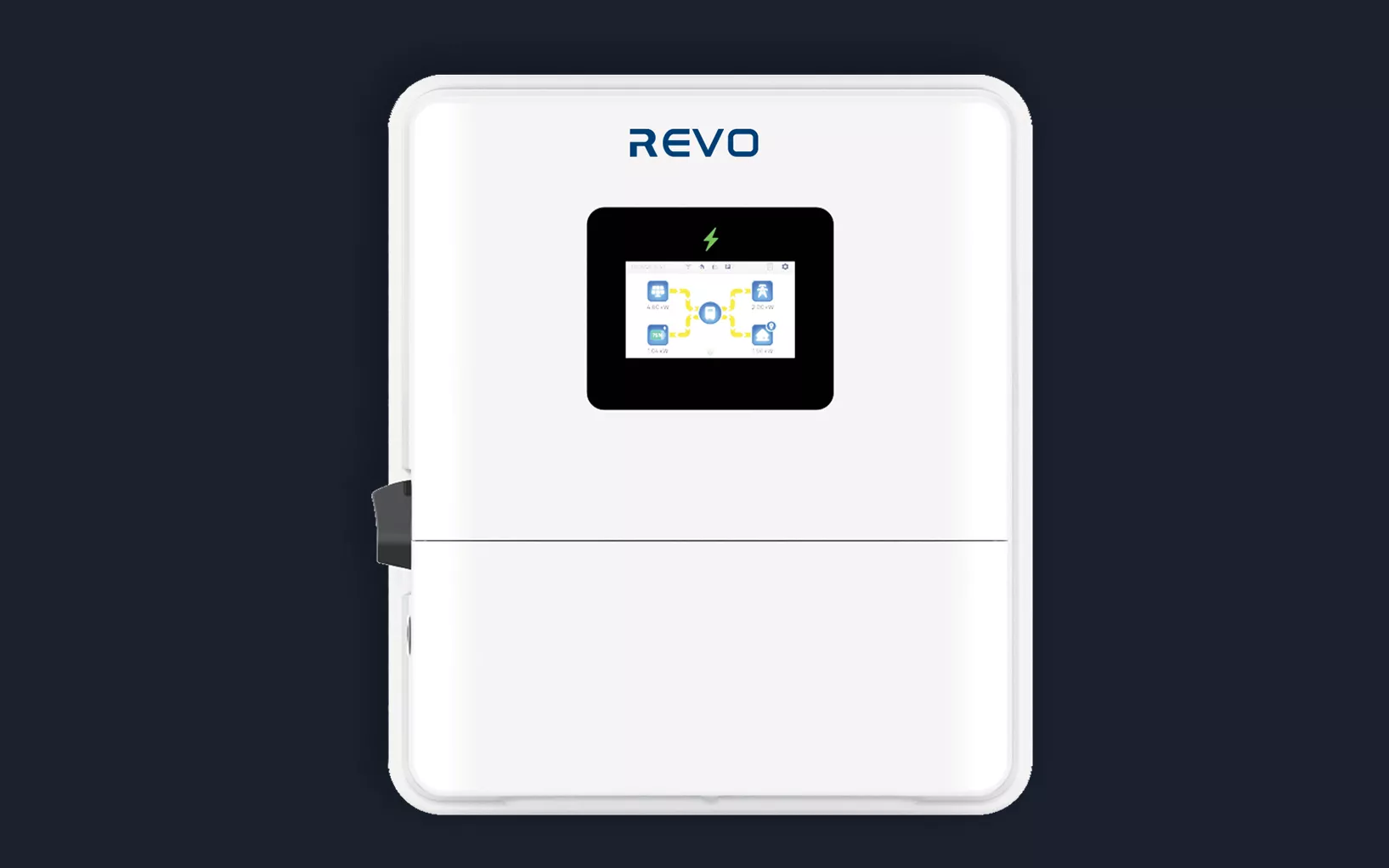

PRODUCT IMAGE · OFFICIAL SOURCE
RESIDENTIAL INVERTERS · REVO BOLT

Bolt 3–6kW Single-Phase Low-Voltage Inverter

Single-phase low-voltage inverter range with 40–65V battery support and backup transition..
OUTPUT POWER
3–6 kW
OUTPUT POWER
BATTERY RANGE
40–65 V
BATTERY RANGE
MAX. EFFICIENCY
97.3%
MAX. EFFICIENCY
Official datasheet

Product Overview

The datasheet presents Eclipse as a floor-mounted C&I storage platform for commercial sites, industrial facilities, data centers, off-grid solar, microgrids and charging stations..

01.     18A PV input current for high-power modules

02.     Up to 135A battery charge and discharge current

03.     10 ms transition to backup mode

04.      Up to 9 units in parallel for on-grid and off-grid operation


  • SPECIFICATIONS
  • APPLICATIONS
  • DOWNLOADS
  • CERTIFICATIONS
Power variants3 / 3.6 / 3.68 / 4.6 / 5 / 6 kW
Nominal AC output3–6 kW
Max. efficiency97.3%
Max. PV usable power10 kW
Max. PV input voltage550 V
MPPT range70–540 V
Battery voltage40–65 V
Max. continuous charge current75–135 A
Backup transfer time10 ms typical
Protection degreeIP54
Operating temperature-25°C to 60°C
ParallelUp to 9 units
BalanceActive balancing
Dimension367 × 421 × 215 mm
Weight16 kg
Warranty5 years / 10 years optional
