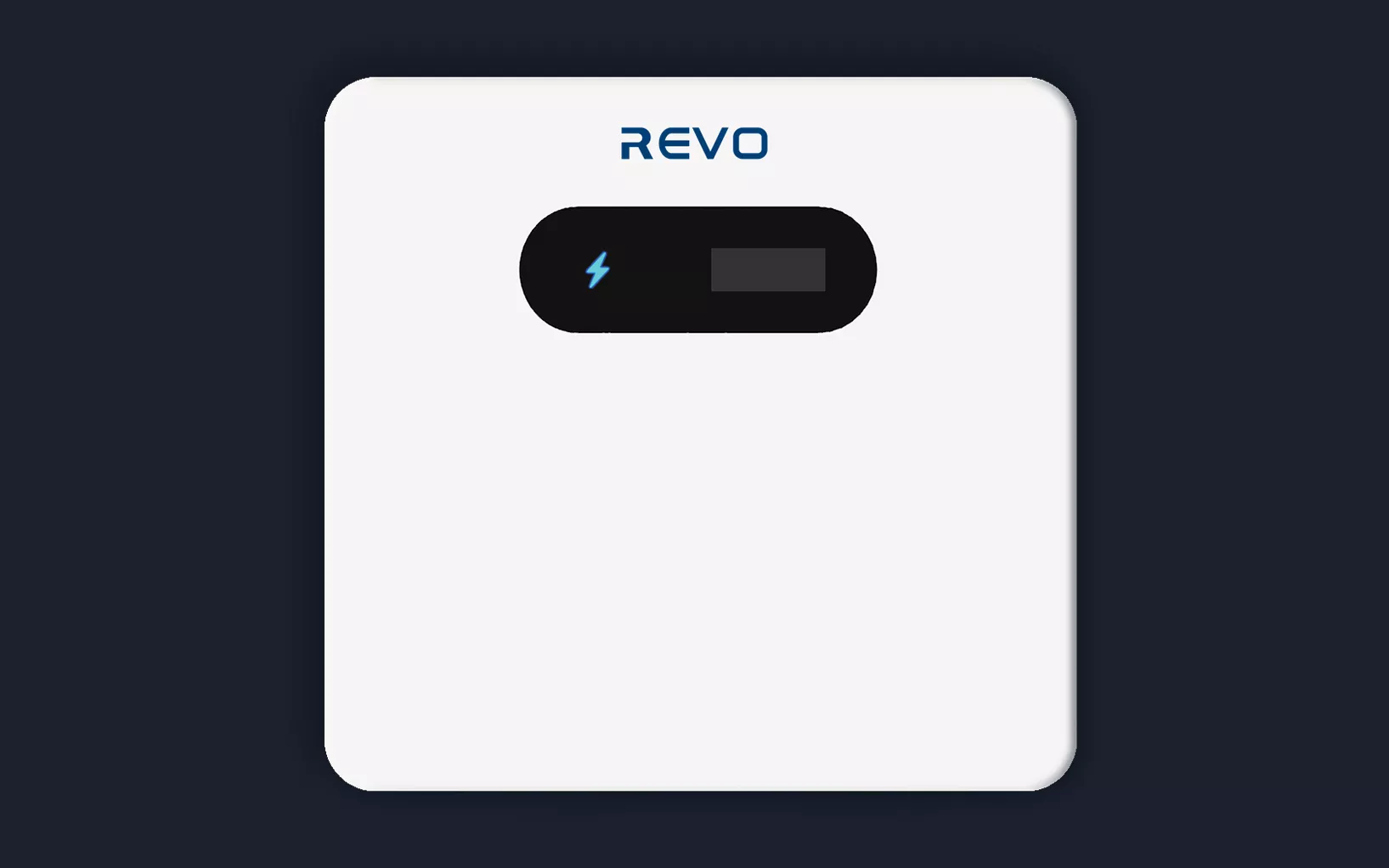

Rift 3.6–6.6kW Single-Phase On-Grid Inverter

Single-phase dual-MPPT grid-tied inverter range for residential PV systems.

3.6–6.6 KW

OUTPUT POWER

98.2%

MAX. EFFICIENCY

IP66

IP RATING

Residential Use

Download Datasheet

WhatsApp/ WeChat

Official datasheet

Product Overview

The residential-use datasheet covers 3.6, 4, 4.6, 5, 6 and 6.6kW models with a wide grid-voltage range, outdoor protection and remote monitoring options.

01. Maximum efficiency of 98.2%

02. Large string current for high-power PV modules

03. Wide voltage range for multiple grid conditions

04. IP66 protection for outdoor installation

SPECIFICATIONS
APPLICATIONS
DOWNLOADS
CERTIFICATIONS

Power variants	3.6 / 4 / 4.6 / 5 / 6 / 6.6 kW
Nominal AC output	3.6–6.6 kW
Max. efficiency	98.2%
Max. PV usable power	150% STC
Max. PV input voltage	550 V
MPPT range	40–540 V
Number of MPPTs	2
Rated AC voltage	220 / 230 / 240 V
Protection degree	IP66
Operating temperature	-25°C to 60°C
Dimension	297 × 282 × 145 mm
Weight	7.2 kg
Warranty	5 years / 10 years optional
