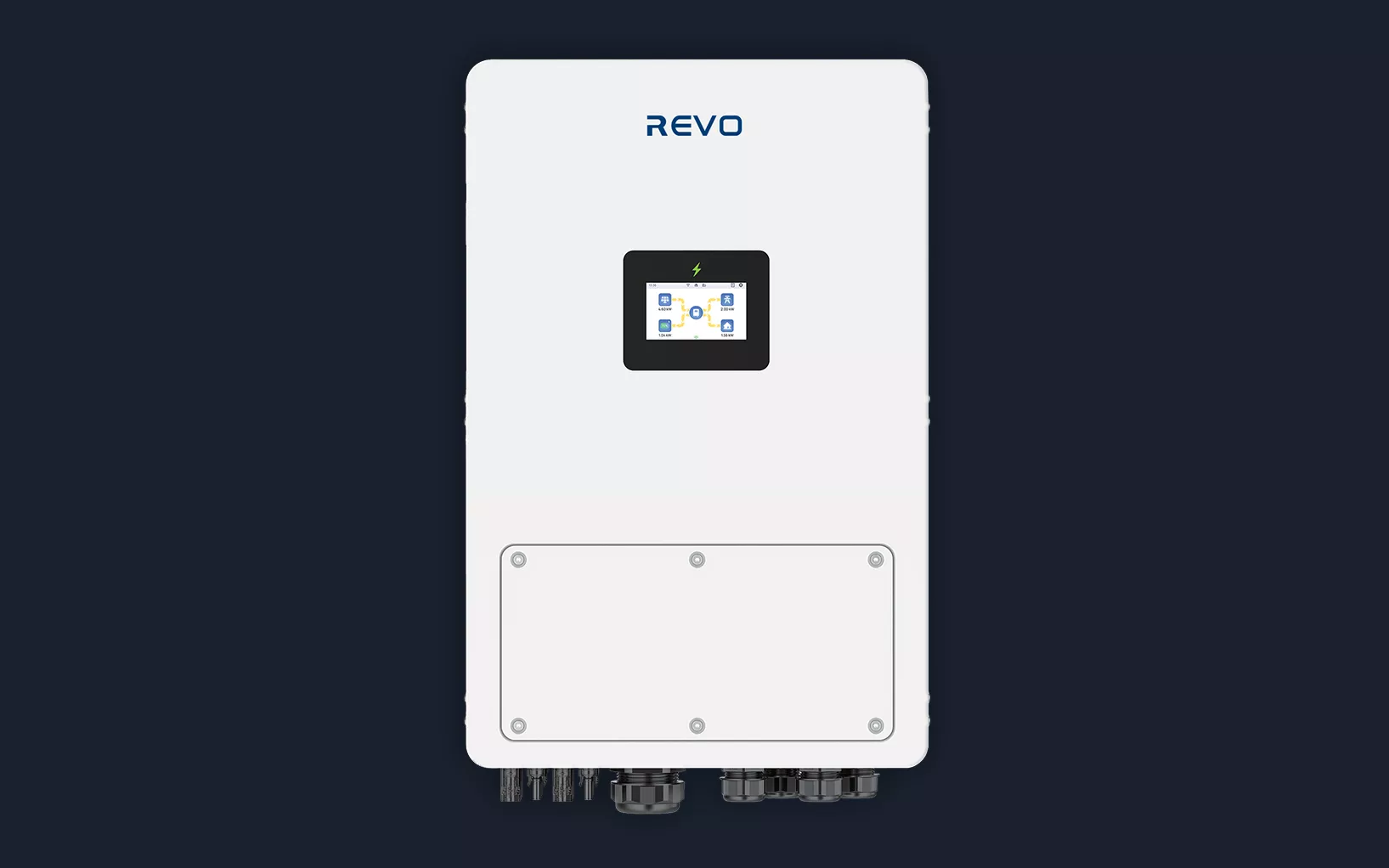

PRODUCT IMAGE · OFFICIAL SOURCE
RESIDENTIAL INVERTERS · REVO BLADE

Blade 8–12kW Single-Phase LV Hybrid Inverter

Single-phase hybrid inverter range with up to three MPPTs and 40–60V battery support.
OUTPUT POWER
8–12 KW
OUTPUT POWER
BATTERY RANGE
40–60 V
BATTERY RANGE
MAX. EFFICIENCY
97.6%
MAX. EFFICIENCY
Official datasheet

Product Overview

The residential-use datasheet covers 8, 10 and 12kW models with PV oversizing, generator or smart-load integration, AC coupling, parallel operation and backup switching.

01.     200% PV oversizing and 160% usable PV power

02.     Up to 3 MPPTs with 36A input current per MPPT

03.     Up to 250A battery charge and discharge current

04.      200% peak backup output for 10 seconds


  • SPECIFICATIONS
  • APPLICATIONS
  • DOWNLOADS
  • CERTIFICATIONS
Power variants8 / 10 / 12 kW
Nominal AC output8 / 10 / 12 kW
Max. efficiency97.6%
Max. PV access power 16 / 20 / 24 kW
Max. PV usable power12.8 / 16 / 19.2 kW
Max. PV input voltage550 V
MPPT range70–450 V
Battery voltage40–60 V
Max. continuous charge current190 / 220 / 250 A
Backup transfer time<10 ms typical
Protection degreeIP66
Operating temperature-25°C to 60°C
Dimension443 × 679 × 210 mm
Weight30 kg
Warranty5 years
