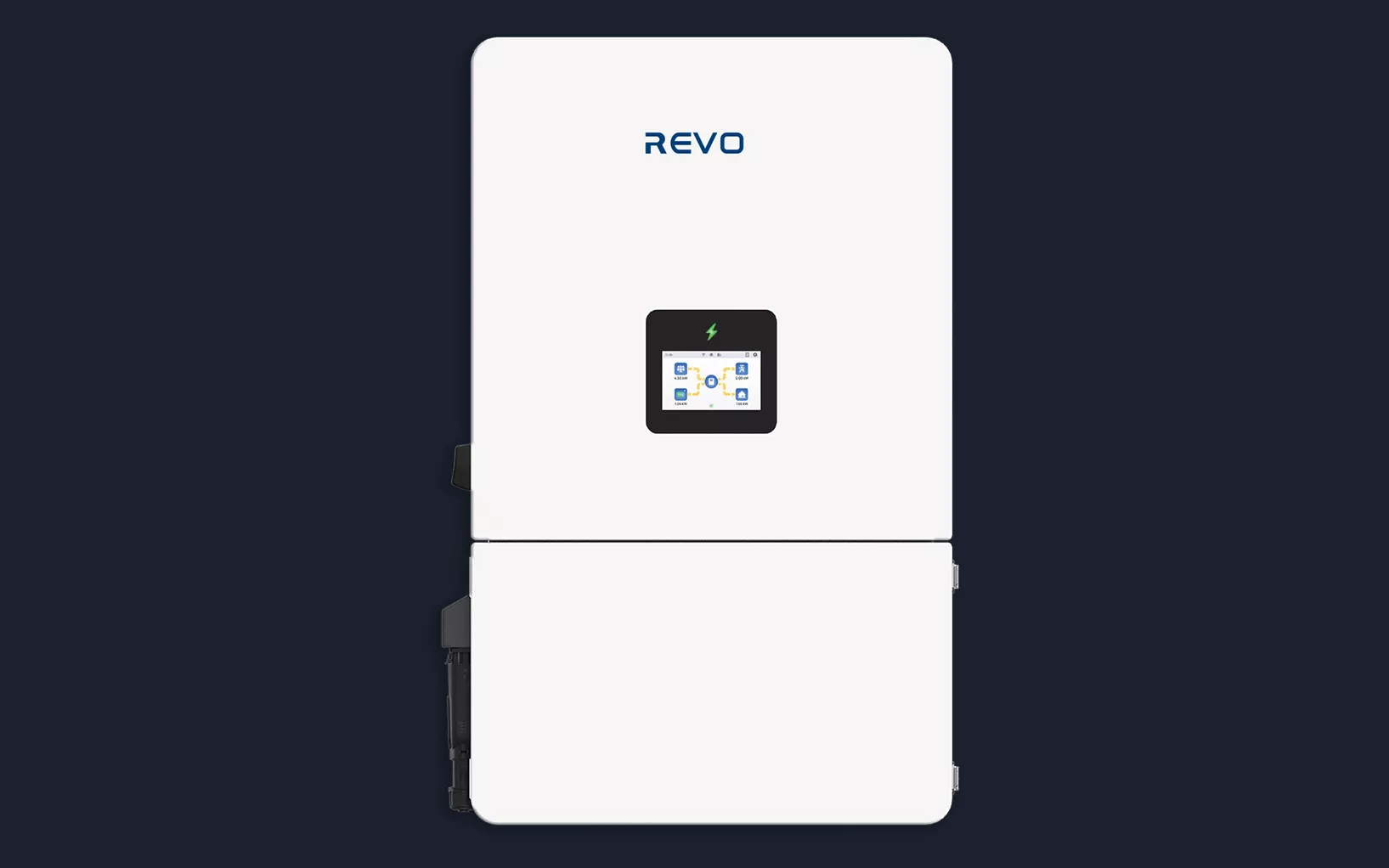

PRODUCT IMAGE · OFFICIAL SOURCE
RESIDENTIAL INVERTERS · REVO AURA

Aura 6–20kW Three-Phase LV Hybrid Inverter

Three-phase low-voltage hybrid inverter range for residential and small C&I use..
OUTPUT POWER
6–20 KW
OUTPUT POWER
BATTERY RANGE
40–60 V
BATTERY RANGE
MAX. EFFICIENCY
97.6%
MAX. EFFICIENCY
Official datasheet

Product Overview

The datasheet covers 6, 8, 10, 12, 15 and 20kW models with unbalanced three-phase output, smart-load or generator support, AC coupling and parallel operation.

01.     Up to 30kW usable PV input power

02.     Up to three MPPTs with 20A input current

03.     Up to 380A battery charge and discharge current

04.      Three-phase unbalanced output


  • SPECIFICATIONS
  • APPLICATIONS
  • DOWNLOADS
  • CERTIFICATIONS
Power variants6 / 8 / 10 / 12 / 15 / 20 kW
Nominal AC output6–20 kW
Max. efficiency97.6%
Max. PV usable power20–30 kW
Max. PV input voltage1000 V
MPPT range160–980 V
Number of MPPTs 2 / 3
Battery voltage40–60 V
Max. charge/discharge currentUp to 380 A
Backup transfer time<10 ms typical
Protection degreeIP65
Operating temperature-25°C to 60°C
ParallelUp to 9 units
BalanceActive balancing
Dimension460 × 742 × 266 mm
Weight50 kg
Warranty5 years / 10 years optional
