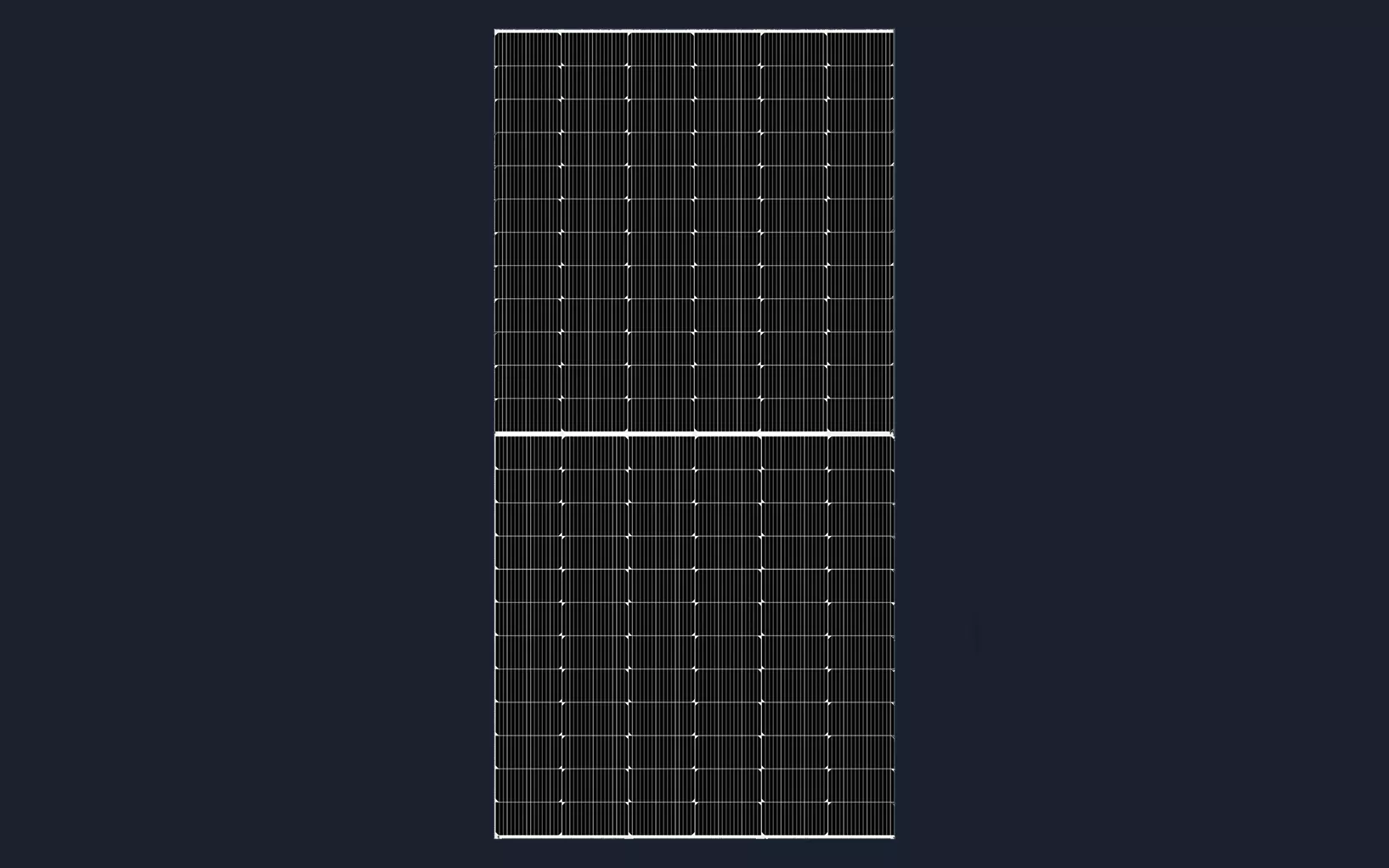

PRODUCT IMAGE · OFFICIAL SOURCE
SOLAR PANELS · AS-7M144N-BHC

AS-7M144N-BHC 560–600W Bifacial Module

N-type TOPCon bifacial monocrystalline module range with up to 23.22% efficiency.
POWER
560–600 W
POWER
EFFICIENCY
Up to 23.22%
EFFICIENCY
SYSTEM VOLTAGE
1500 V DC
SYSTEM VOLTAGE
Official datasheet

Product Overview

The datasheet specifies low light-induced degradation, low temperature coefficient, PID resistance and mechanical load ratings of 2400Pa wind and 5400Pa snow.

01.     Module efficiency up to 23.22%

02.     N-type TOPCon bifacial cell technology

03.     2400Pa wind load and 5400Pa snow load

04.      20-year product and 30-year linear output warranty


  • SPECIFICATIONS
  • APPLICATIONS
  • DOWNLOADS
  • CERTIFICATIONS
ModelAS-7M144N-BHC
Power range560–600 W
TechnologyMonocrystalline N-type bifacial TOPCon
Module efficiency21.68–23.22%
Open-circuit voltage50.4–52.0 V
Short-circuit current14.04–14.44 A
Operating temperature-40°C to 85°C
Maximum system voltage1500 V DC
Maximum series fuse30 A
Dimensions2279 × 1134 × 30 mm
Weight27.5 kg
Junction boxIP68, 3 diodes
Warranty20-year product / 30-year linear output
