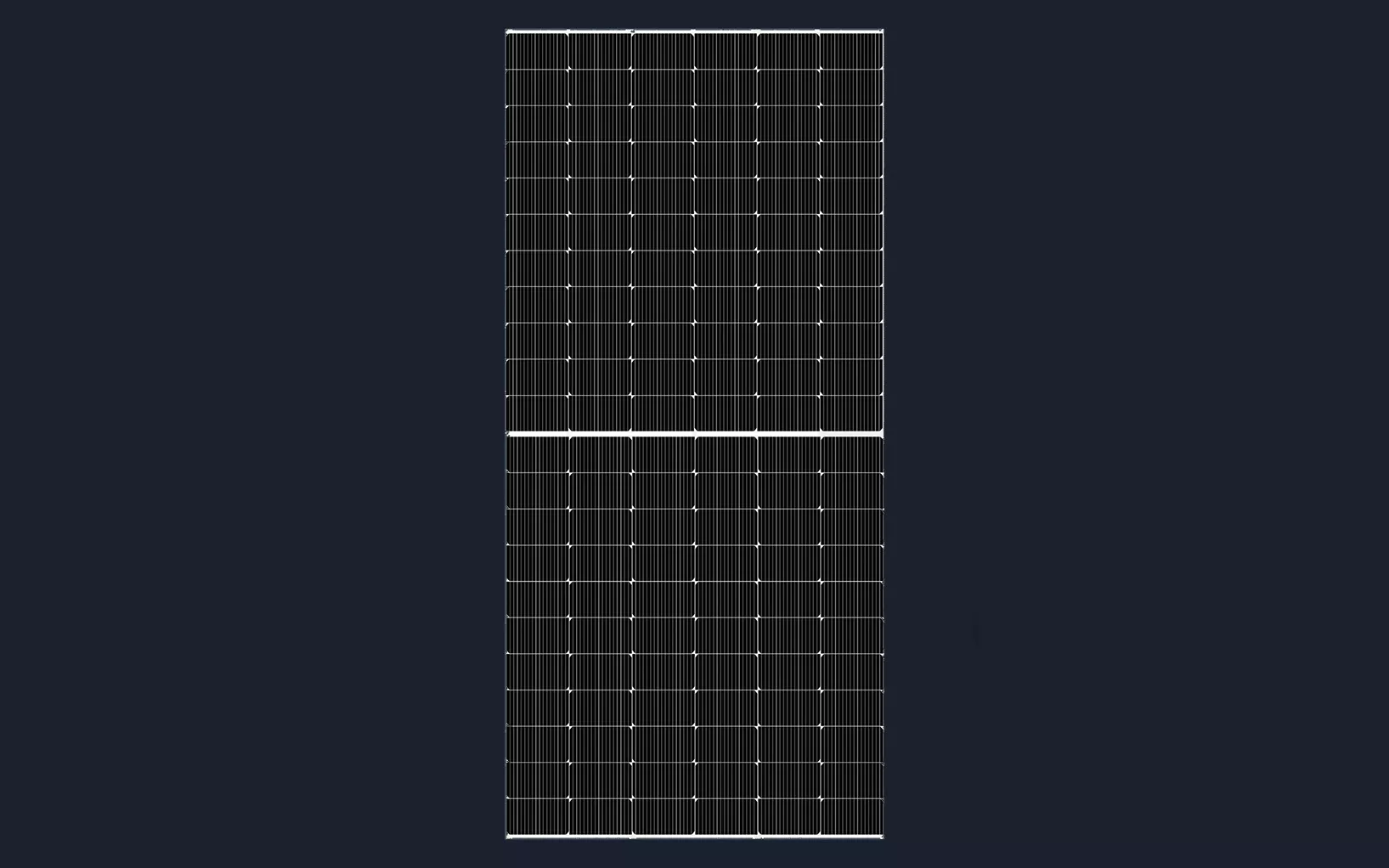

AS-7M132N-BHC G12R 600–630W Module

N-type TOPCon monocrystalline module range with up to 23.31% efficiency.

600–630 W

POWER

Up to 23.31%

EFFICIENCY

1000 / 1500 V DC

SYSTEM VOLTAGE

Download Datasheet

WhatsApp/ WeChat

Official datasheet

Product Overview

The datasheet specifies low light-induced degradation, low temperature coefficient, PID resistance and mechanical load ratings of 2400Pa wind and 5400Pa snow.

01. Module efficiency up to 23.31%

02. N-type TOPCon cell technology

03. 2400Pa wind load and 5400Pa snow load

04. 20-year product and 30-year linear output warranty

SPECIFICATIONS
APPLICATIONS
DOWNLOADS
CERTIFICATIONS

Model	AS-7M132N-BHC G12R
Power range	600–630 W
Technology	Monocrystalline N-type TOPCon
Module efficiency	Up to 23.31%
Open-circuit voltage	48.5–49.5 V
Short-circuit current	15.95–16.20 A
Operating temperature	-40°C to 85°C
Maximum system voltage	1000 / 1500 V DC
Maximum series fuse	30 A
Dimensions	2382 × 1134 × 30 mm
Weight	28 kg
Junction box	IP68, 3 diodes
Warranty	20-year product / 30-year linear output
