SOLAR PANELS · AS-8M132N-BHC

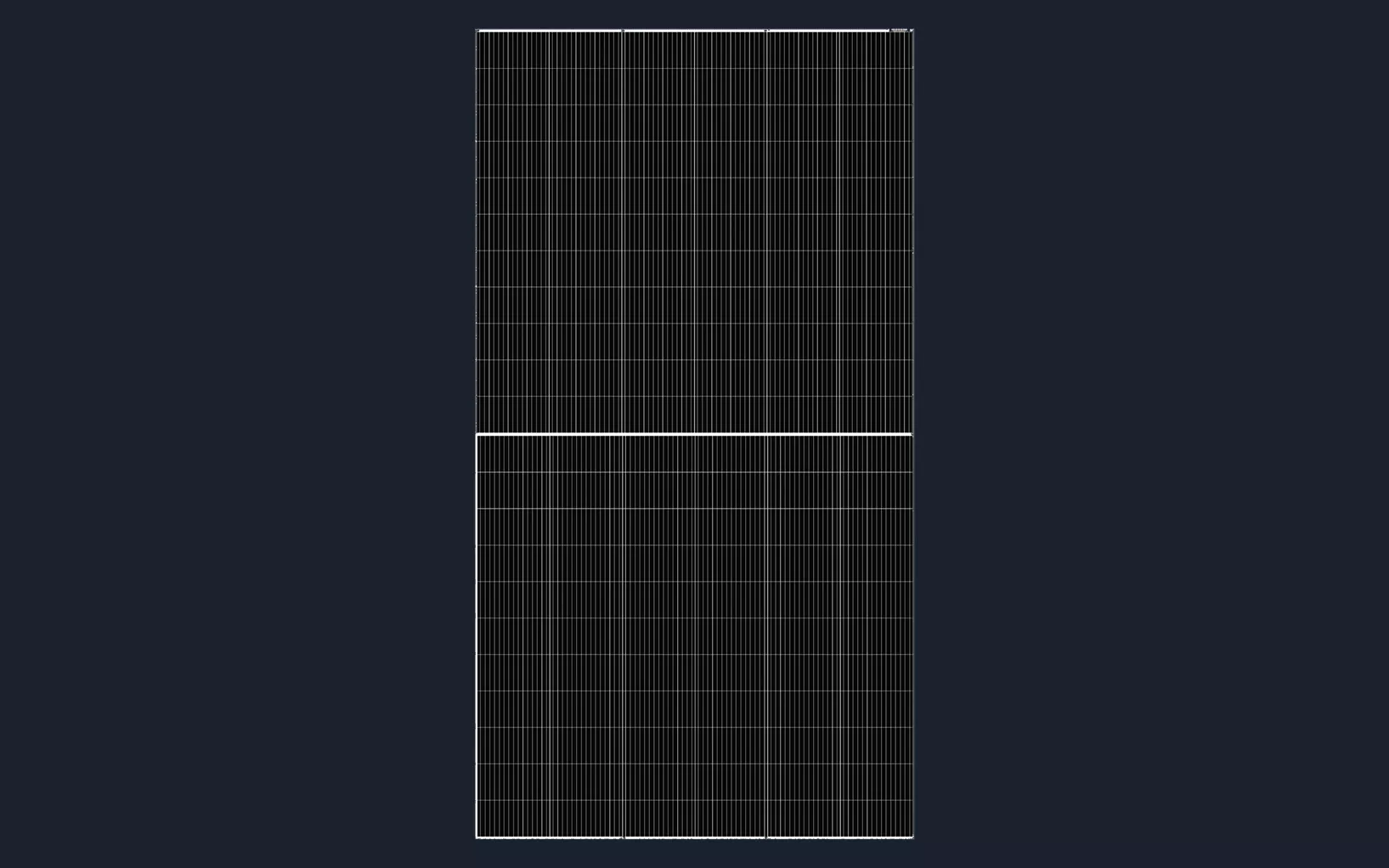

AS-8M132N-BHC 690–720W Module

N-type TOPCon monocrystalline module range with up to 23.18% efficiency.
POWER
690–720 W
POWER
EFFICIENCY
Up to 23.18%
EFFICIENCY
SYSTEM VOLTAGE
1500 V DC
SYSTEM VOLTAGE
Official datasheet

Product Overview

The datasheet specifies rear-side power gain up to 30%, low annual degradation, PID resistance and mechanical load ratings of 2400Pa wind and 5400Pa snow.

01.     Module efficiency up to 23.18%

02.     Rear-side power gain up to 30%

03.     2400Pa wind load and 5400Pa snow load

04.      20-year product and 30-year linear output warranty


  • SPECIFICATIONS
  • APPLICATIONS
  • DOWNLOADS
  • CERTIFICATIONS
ModelAS-8M132N-BHC
Power range690–720 W
TechnologyMonocrystalline N-type TOPCon
Module efficiency22.21–23.18%
Open-circuit voltage49.8–51.0 V
Short-circuit current17.35–17.59 A
Operating temperature-40°C to 85°C
Maximum system voltage1500 V DC
Maximum series fuse35 A
Dimensions2384 × 1303 × 35 mm
Weight38.5 kg
Junction boxIP68, 3 diodes
Warranty20-year product / 30-year linear output
