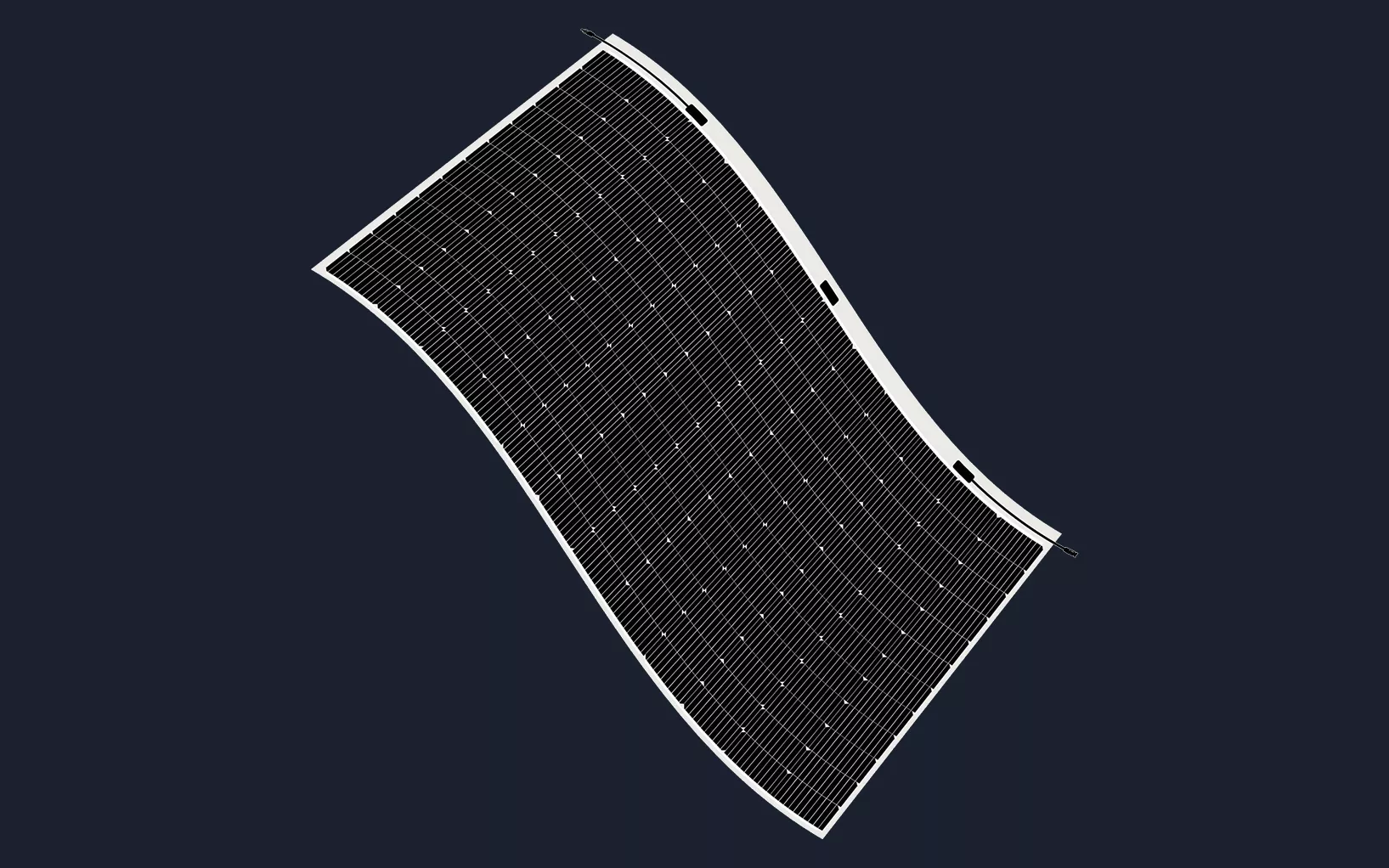

AS-7M144NFL-HC Flexible 550–575W Module

Lightweight flexible monocrystalline TOPCon module with a 0.30m bending radius.
POWER
550–575 W
POWER
WEIGHT
8.0 kg
WEIGHT
THICKNESS
2 mm
THICKNESS
Official datasheet

Product Overview

The datasheet specifies a 2mm lightweight module for curved surfaces, using bonded installation without penetration or conventional mounting hardware.

01.     70% lighter at the same power

02.     0.30m bending radius for curved surfaces

03.     Bonded installation without penetration

04.      12-year product and 25-year linear output warranty


  • SPECIFICATIONS
  • APPLICATIONS
  • DOWNLOADS
  • CERTIFICATIONS
ModelAS-7M144NFL-HC
Power range550–575 W
TechnologyMonocrystalline TOPCon 182 × 91 mm
Module efficiency20.46–21.39%
Open-circuit voltage53.79–54.79 V
Short-circuit current12.89–13.09 A
Operating temperature-40°C to 85°C
Maximum system voltage1500 V DC
Maximum series fuse25 A
Dimensions2246 × 1197 × 2 mm
Weight8.0 kg
Junction boxIP68, 3 diodes
Warranty12-year product / 25-year linear output
